Hose ID: 1/8"-2"6SN
Quantity of dies: 11 Sets
Air Inlet: 0.6-0.8Mpa
Driving mode of system: Air drive
Machine Size: 930×670×1050mm
Fitting Assembly Machine
Your Professional Fitting Assembly Machine Supplier!
As a leader in hydraulic hose assembly solutions, Wuxi Tinoflex Co.,Ltd. offers a comprehensive product line designed to meet a variety of fluid transfer needs. From precision hose crimping machines and hose cutting machines to hose trimming machines, hose pressure testing machines, hose racks, and nut crimping machines, we can meet your fluid transfer needs.
Why Choose Us
Uncompromising Quality:
All our products undergo rigorous quality checks to ensure they meet the highest industry standards. We aim to provide durable, reliable, and efficient solutions.
Customization Services:
Understanding your unique requirements is vital to providing the best solutions. We work closely with our clients to tailor products that precisely match their needs.
Innovative Solutions:
With a focus on continuous improvement and innovation, we stay ahead of the curve by developing state-of-the-art fluid transfer products. Our commitment to research and development allows us to address evolving challenges and offer hydraulic hose assembly soultion.
Expert Team:
Our team of experienced engineers and technicians possesses deep domain knowledge. Their expertise enables us to deliver unmatched support and technical assistance, ensuring a smooth experience throughout your journey with us.
Our Best-Selling Fitting Assembly Machine

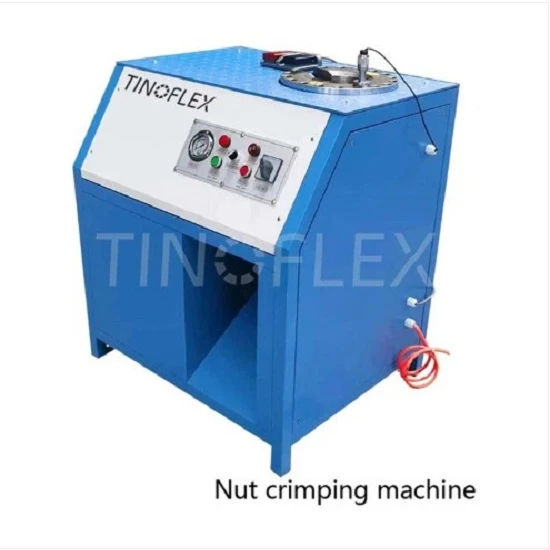

Hydraulic Fitting Assembly Machine
TINOFLEX Fitting assembly machine is a state-of-the-art piece of equipment designed to streamline the process of assembling fittings. This machine is specifically engineered for fittings used in industrial and commercial pipes and tubing systems. It is capable of handling a wide variety of fittings, including elbows, tees, couplings, reducers, and more.
One of the key features of the TINOFLEX Fitting assembly machine is its precision engineering. The machine is made with high-quality components that ensure accuracy and efficiency in the assembly process. Its advanced technology and user-friendly interface make it easy to operate and maintain.
Fitting Assembly Machine Specification
|
Hose ID |
1/8"-2"6SN |
|
Quantity of dies |
11 Sets |
|
Air Inlet |
0.6-0.8Mpa |
|
Driving mode of system |
Air drive |
|
Machine Size |
930×670×1050mm |
|
Weight |
65Kg |
Features of Fitting Assembly Machine
Durable Head Construction: The machine has a high - quality forged steel head. It's robust, wear - resistant, and built for a long service life, enduring frequent use without significant wear, thus saving replacement costs.
Precise Pressure Control: An upgraded microcomputer numerical control panel offers more accurate control of buckle pressure. Operators can set exact pressure for different hoses, ensuring consistent and safe crimped connections.
Versatile Pipe Compatibility: A large opening head allows it to crimp 1/4" - 2" 4S pipes like oil and gas pipes. This versatility means one machine can handle various applications, reducing equipment costs.
Safe and Convenient Operation: Equipped with an anti - mistouch foot pedal, it prevents accidental starts. Pedaling controls mold opening and closing, enabling hands - free operation for better focus and safety.
Enhanced Work Efficiency: The quick mold change function cuts downtime between jobs. It allows for rapid switching between different hoses or fittings, boosting overall production output.
User - Friendly Design: The design is user - centric with added lighting for clear visibility in any environment. The freely disassemblable rack simplifies cleaning, maintenance, and transportation.
Fitting Assembly Machine Operation Instructions
Based on the size of the rubber hose to be buckled, select suitable mould as per the technical parameter reference table of the locking pipe and mount it on the mould base.
Regulated well the scale position as per the data in the data in the table, the pipe locking can be done. After pipe locking, use a vernier caliper to mease the outside diameter dimension of the pipe sleeve after buckling to see if it meets the reference table data of the parameter. If it does not meet the data, the scale shall be precisely regulated until it meets the requirements.
Fitting Assembly Machine Safety Features
Fitting assembly machines are equipped with essential safety features to protect operators and prevent accidents.
These features include an emergency stop button that instantly halts machine operation in emergencies, pressure relief valves that prevent over-pressurization, and safety guards to shield operators from moving parts. Clear warning signs and labels indicate potential hazards and provide safety instructions.
Manufacturers also provide comprehensive training materials and operator manuals to ensure safe use of the machine. These safety features promote a secure working environment, minimize risks, and demonstrate a commitment to operator safety.
Customization Services
In order to better meet the diverse needs of different industries and customers, we can tailor fitting assembly machine professional solutions according to your specific application scenarios and special requirements. If you need further information or support, please feel free to contact us.
Packaging and Shipping
|
Packaging |
Plastic film, wooden box |
|
Transportation methods |
Road transport, rail transport, sea transport, air transport |
FAQ
As one of the leading fitting assembly machine manufacturers in China, we warmly welcome you to buy discount fitting assembly machine made in China here from our factory. All machines are with high quality and low price. Contact us for quotation.
